Tee Product Introduction
Carbon Steel &stainless Steel Tee
Tees are critical pipe fittings used for splitting or merging flows in piping systems, widely used in industries such as petroleum, chemical, and power. Tees are mainly divided into equal tees and reducing tees. Common tee sizes range from DN15-DN2000, with pressure ratings from Sch5s-Sch60 and PN0.6-PN32. Tees are made from materials such as carbon steel, alloy steel, stainless steel, and low-temperature steel. Forming methods include cold extrusion and hot pressing. Tees primarily adhere to international standards such as ASME B16.9-2018 and MSS SP-75-2019.

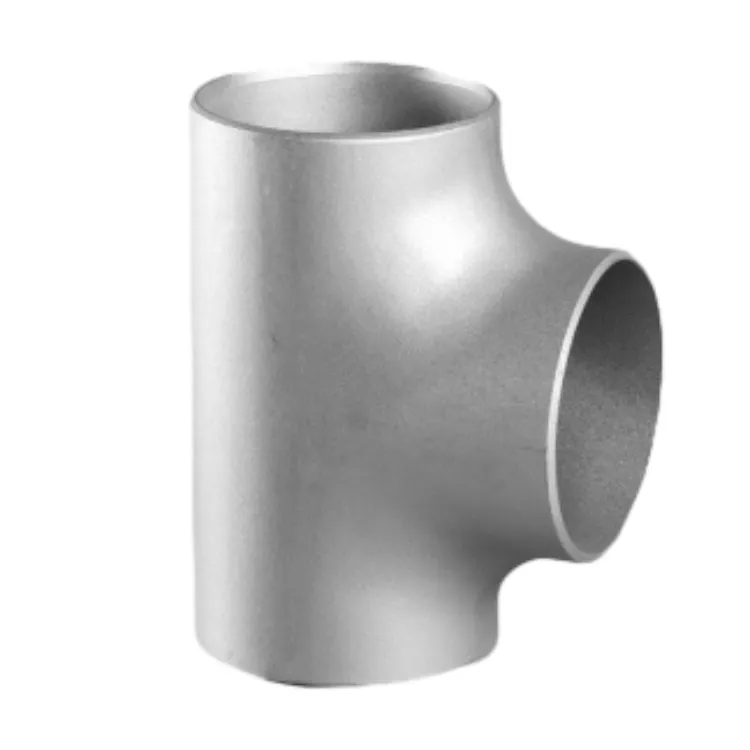

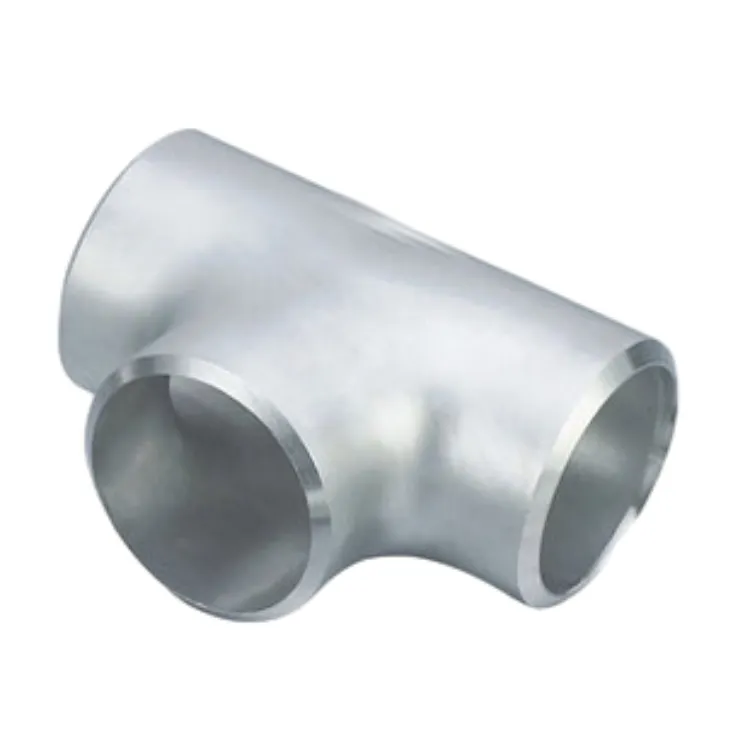

Equal Tee Features
Lightweight and Corrosion-Resistant: Easy to handle.
Smooth Pipe Walls: Less prone to scaling, with good overall performance.
Durability: Non-toxic and safe for use.
UV Resistance: Does not affect water quality.
Simple Installation: Advanced connection methods prevent leakage.

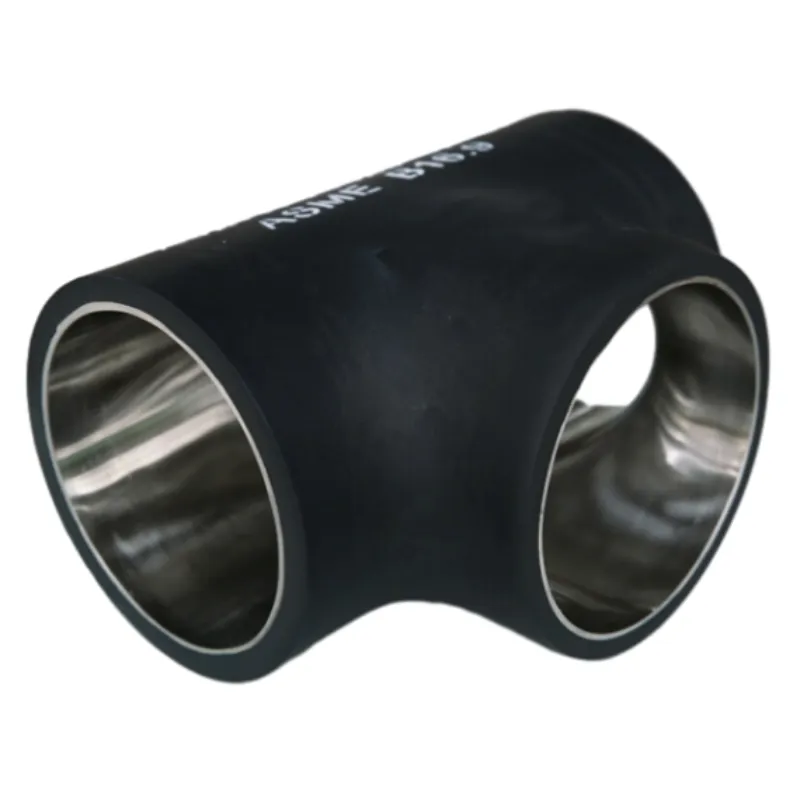

Bimetal Clad Tee
Bimetal clad Tee is a highly advanced pipe fitting designed to combine the benefits of two different metals, typically a strong and durable base metal like carbon steel with a corrosion-resistant, high-performance alloy on the inner surface. This innovative construction provides superior resistance to wear, corrosion, and extreme temperatures, making it ideal for applications in harsh environments such as oil and gas, petrochemicals, and power generation. The composite design ensures longer service life and reduced maintenance costs, addressing the challenges of transporting corrosive fluids and gases.
The unique bimetallic structure of the clad Tee allows for seamless integration of materials, where the base metal offers mechanical strength and the alloy layer delivers excellent resistance to chemical corrosion, erosion, and high-pressure conditions. This results in a fitting that combines structural integrity with enhanced durability, making it highly reliable for critical systems where conventional fittings might fail due to material degradation. Its application significantly reduces the need for frequent replacements, offering long-term cost savings.
Bimetal clad Tees are available in various sizes and configurations to suit diverse industrial needs. Whether for straight-line installations, branching connections, or junctions under high-demand conditions, these fittings offer easy installation, reduced downtime, and optimized flow management. With their advanced performance characteristics, Bimetal Composite Tees are an excellent choice for enhancing the efficiency and reliability of complex piping systems in industries requiring advanced material solutions.
Reducing Tee Features
Connects Different Diameters:** Used at pipeline diameter changes to ensure smooth fluid flow.
Flexible Flow Control: Allows for reasonable flow distribution based on different pipeline flow requirements.
Tee weight：
|
Nominal Diameter
|
Svoris apie kg
|
|
DN
|
NPS
|
SCH10S
|
SCH20
|
STD
|
SCH40
|
XS
|
SCH80
|
|
15
|
1/2
|
0.12
|
-
|
0.16
|
0.16
|
0.20
|
0.20
|
|
20
|
3/4
|
0.14
|
-
|
0.20
|
0.20
|
0.30
|
0.30
|
|
25
|
1
|
0.25
|
-
|
0.28
|
0.28
|
0.45
|
0.45
|
|
32
|
1-1/4
|
0.46
|
-
|
0.60
|
0.60
|
0.70
|
0.70
|
|
40
|
1-1/2
|
0.70
|
-
|
0.92
|
0.92
|
1.25
|
1.25
|
|
50
|
2
|
1.20
|
-
|
1.48
|
1.48
|
2.15
|
2.15
|
|
65
|
2-1/2
|
2.45
|
-
|
2.68
|
2.68
|
2.95
|
2.95
|
|
80
|
3
|
1.90
|
-
|
3.76
|
3.76
|
4.35
|
4.35
|
|
90
|
3-1/2
|
2.60
|
-
|
4.62
|
4.62
|
5.85
|
5.85
|
|
100
|
4
|
3.10
|
-
|
6.50
|
6.50
|
7.66
|
7.66
|
|
125
|
5
|
5.20
|
-
|
9.66
|
9.66
|
13.5
|
13.5
|
|
150
|
6
|
7.20
|
-
|
14.0
|
14.0
|
19.3
|
19.3
|
|
200
|
8
|
11.5
|
17.5
|
24.5
|
24.5
|
34.5
|
34.5
|
|
250
|
10
|
19.2
|
28.0
|
41.3
|
41.3
|
58.4
|
67.5
|
|
300
|
12
|
30.5
|
42.6
|
65.0
|
69.0
|
76.5
|
105
|
|
350
|
14
|
40.5
|
64.5
|
83.0
|
96.0
|
104
|
142
|
|
400
|
16
|
48.0
|
78.2
|
110
|
120
|
120
|
187
|
|
450
|
18
|
58.0
|
102
|
132
|
170
|
159
|
263
|
|
500
|
20
|
85.0
|
168
|
168
|
240
|
192
|
356
|
|
550
|
22
|
92.0
|
185
|
185
|
-
|
209
|
416
|
|
600
|
24
|
138
|
222
|
222
|
345
|
251
|
548
|
|
650
|
26
|
-
|
340
|
240
|
-
|
340
|
-
|
|
700
|
28
|
-
|
390
|
251
|
-
|
390
|
-
|
|
750
|
30
|
224
|
420
|
280
|
-
|
420
|
-
|
|
800
|
32
|
-
|
480
|
315
|
504
|
480
|
-
|
|
850
|
34
|
-
|
540
|
351
|
561
|
540
|
-
|
|
900
|
36
|
-
|
610
|
396
|
790
|
610
|
-
|
|
950
|
38
|
-
|
-
|
437
|
-
|
727
|
-
|
|
1000
|
40
|
-
|
-
|
488
|
-
|
792
|
-
|
|
1050
|
42
|
-
|
-
|
513
|
-
|
836
|
-
|
|
1100
|
44
|
-
|
-
|
560
|
-
|
925
|
-
|
|
1150
|
46
|
-
|
-
|
631
|
-
|
995
|
-
|
|
1200
|
48
|
-
|
-
|
683
|
-
|
1080
|
-
|
|
1300
|
52
|
-
|
-
|
798
|
-
|
-
|
-
|
|
1400
|
56
|
-
|
-
|
906
|
-
|
-
|
-
|
|
1500
|
60
|
-
|
-
|
1018
|
-
|
-
|
-
|
